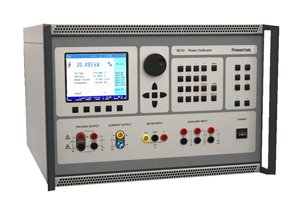

The MC133 master unit
model is
a one phase electric power/energy calibrator. It can supply the
device under
test with one phase accurate AC voltage and current with calibrated
phase shift or DC voltage and current. Output voltage can be set in five
ranges up to 280V and output current in six ranges up to 30A. Simulated
electric power can be set independently in each phase. Frequency can be
set in range from 15Hz to 1 kHz with resolution 0.001Hz to 0.01Hz.
Calibrator is equipped with 5 1/2 digital DC meter with DC ranges 20mA
or 10V for direct calibrating of various types of power transducers.
The
MC133 calibrator offers two types of defined distortion of main
sinusoidal output signal. The first distortion is based on
adding a defined amount of harmonic or inter-harmonic spectral components
up to 5kHz. The second type of distortion is based on amplitude
modulation of output sinusoidal signal by sin or square-wave modulation
signal in frequency range from 0.001Hz to 50Hz. Maximum depth of
modulation is 30%.

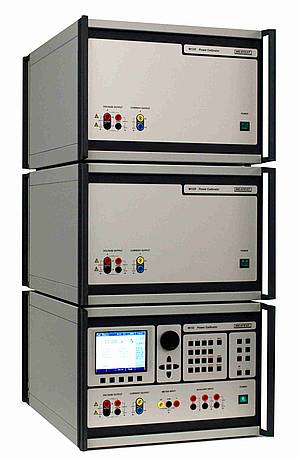

Three-phase electric power/energy calibration system can be
optionally built-up using one MC133 master unit and two MC133f slave
units. The slave units contain power stages of each additional phase
output. They are fully controlled from master unit via rear panel
special interface. Maximum output voltage between two voltage phases is
560VAC. Current outputs can be joined together offering total range to
90A AC/DC. |
| |
|
General
technical data |
|
Voltage range
(sine mode) |
1V to 280V
AC or DC |
|
Current range
(sine mode) |
8mA to 30A
AC or DC |
|
Resolution |
5 1/2 digit |
|
Frequency
range |
15Hz to 1000Hz |
|
Frequency
accuracy |
0.005% (for
50/60Hz synchronization to mains frequency can be set) |
|
Frequency
resolution |
0.001 Hz bellow
40Hz, 0.01Hz above 40Hz |
|
Distortion of
voltage output |
< 0.05% |
|
Distortion of
current output |
< 0.1% |
|
Phase shift
range |
0.000° to
359.99° |
|
Power factor
range |
-1.000 to
+1.000 |
|
Total electric
power range |
0.03VA to
8400VA |
|
Total electric
energy range |
0.03VAs to
2333VAhr |
|
Time interval
range |
1s to 10000s |
|
Time interval
accuracy |
0.01% + 0.1s |
|
|
SPECIFICATIONS |
|
|
| |
| DC/AC Voltage (sine mode) |
|
Range
|
% of value
+
% of range |
Max.
current
(mA) |
% of value
+
% of range |
Max.
current
(mA) |
% of value
+
% of range |
Max.
current
(mA) |
| |
DC |
DC |
15 - 40Hz
70 - 1000Hz |
15 - 40Hz
400 - 1000Hz |
40 - 70Hz |
40 - 400Hz |
|
1 - 10V |
0.025 + 0.01 |
100 |
0.03 + 0.02 |
100 |
0.025 + 0.01 |
100 |
|
10 - 30V |
0.025 + 0.01 |
200 |
0.03 + 0.02 |
200 |
0.025 + 0.01 |
200 |
|
30 - 70V |
0.025 + 0.01 |
200 |
0.03 + 0.02 |
200 |
0.025 + 0.01 |
300 |
|
70 - 140V |
0.025 + 0.01 |
200 |
0.03 + 0.02 |
200 |
0.025 + 0.01 |
300 |
|
140 - 280V |
0.025 + 0.01 |
150 |
0.03 + 0.02 |
150 |
0.025 + 0.01 |
200 |
|
DC/AC Current (sine mode) |
|
Range |
% of value
+
% of range |
Max.
voltage
(V) |
% of value
+
% of range |
% of value
+
% of range |
Max.
voltage
(V) |
Max.
voltage
(V) |
| |
DC |
DC |
15 - 40Hz
70 - 1000Hz |
40 - 70Hz |
15 - 400Hz |
400 - 1000Hz |
|
8 - 300mA |
0.03 + 0.01 |
8 |
0.04 + 0.02 |
0.03 + 0.01 |
5.5 |
3.5 |
|
0.3 - 1A |
0.03 + 0.01 |
8 |
0.04 + 0.02 |
0.03 + 0.01 |
5.5 |
3.5 |
|
1 - 2A |
0.03 + 0.01 |
8 |
0.04 + 0.02 |
0.03 + 0.01 |
5.5 |
3.5 |
|
2 - 5A |
0.03 + 0.01 |
5 |
0.04 + 0.02 |
0.03 + 0.01 |
3.5 |
3.5 |
|
5 - 10A |
0.035 + 0.015 |
5 |
0.05 + 0.02 |
0.035 + 0.015 |
3.5 |
3.5 |
|
10 - 30A |
0.04 + 0.02 |
5 |
0.06 + 0.02 |
0.04 + 0.02 |
3.5 |
3.5 |
|
Phase, power factor (sine
mode) |
|
Frequency (Hz) |
Accuracy degrees (°) |
|
15 - 40Hz |
0.1 |
|
40 - 70Hz |
0.05 |
|
70 - 400Hz |
0.1 |
|
400 - 1000Hz |
0.4 |
|
| Accuracy
of power factor: dPF = (1-cos(φ+dφ)/cos(φ) |
|
DC/AC Power (sine mode) |
Accuracy of power is calculated from value
of voltage, current and power factor. |
|
|
| |
Active power (W): dP = square root (dU2 + dI2 + dPF2 + 0.012)
[%]
Reactive power (VAr): dP = square root (dU2 + dI2 + dPF*2 + 0.012)
[%]
Apparent power (VA): dP = square root (dU2 + dI2 + 0.012)
[%] |
| |
Where:
- dP is accuracy of power [%]
- dU is accuracy of voltage [%]
- dI is accuracy of current [%]
- dPF is accuracy of power factor (cos φ) [%]
- dPF* is accuracy of sin φ [%]
|
|
|
H/I mode – Harmonic/interharmonic products |
|
Fundamental
harmonic frequency range |
15Hz to 1000Hz |
|
Fundamental
harmonic amplitude accuracy |
0.2% of range |
|
Frequency
range of harmonic products |
30Hz to 5000Hz (2nd
to 50th order) |
|
Frequency
range of inter-harmonic products |
15Hz to 1000Hz |
|
Max. number
of harmonic products |
50 |
|
Number of
inter-harmonic products |
1 |
|
H/I products
amplitude range |
max. 30% of RMS
fundamental harmonic amplitude |
|
Amplitude
resolution of H/I products |
0.001% |
|
Noise &
Distortion |
-60dB |
Output amplitude accuracy |
|
Range |
%
of fundamental harmonic amplitude range |
%
of fundamental harmonic amplitude range |
| |
30Hz to 3000Hz |
3000Hz to 5000Hz |
|
1.0000V to 10.000V |
0.1 |
0.2 |
|
10.0001 - 30.0000V |
0.1 |
0.2 |
|
30.001 - 70.000V |
0.1 |
0.2 |
|
70.001 - 140.000V |
0.1 |
0.2 |
|
140.001 - 280.000V |
0.1 |
0.2 |
|
0.008000 - 0.300000A |
0.1 |
0.2 |
|
0.30001 - 1.00000A |
0.1 |
0.2 |
|
1.00001 - 2.00000A |
0.1 |
0.2 |
|
2.00001 - 5.00000A |
0.2 |
0.4 |
|
5.0001 - 10.0000A |
0.2 |
0.4 |
|
10.0001 - 30.0000A |
0.4 |
0.8 |
|
|
Modulations – Flickers |
|
Fundamental
harmonic frequency range |
15Hz to 1000Hz |
|
Single
harmonic (2-50) frequency range |
30Hz to 5000Hz |
|
Modulation
frequency range |
0.001Hz to 50Hz |
|
Modulation
depth |
0.000 to 30.000% |
|
Modulation
depth resolution |
0.001% |
|
RMS
amplitude accuracy |
0.2% of range |
|
Waveform of
modulation signal |
sine, rectangular |
|
Duty cycle
ration of rectangular modulation signal |
1% to 99% |
|
Modulation
depth accuracy |
0.2% |
Built-in process
multimeter |
|
Function |
Range |
Accuracy |
Resolution |
|
DC voltage |
0.0000 to +/-12.0000V |
0.01% of value + 0.01% of range |
100uV |
|
DC current |
0.0000 to 25.0000 mA |
0.01% of value + 0.01% of range |
100nA |
|
Frequency |
1.00000Hz to 15.0000kHz |
0.005% |
10uHz - 0.1Hz |
|
|
Accessories
(included): |
|
Power cable |
1 pc |
|
Option 10 Test cable banana-banana 1m 1000V/32A black |
1 pc
(3 pcs for three-phase system) |
|
Option 11 Test cable banana-banana 1m 1000V/32A red |
1 pc
(3 pcs for three-phase system) |
|
Option 12 Test cable banana-banana 1m 1000V/32A blue |
1 pc
(3 pcs for three-phase system) |
|
Option 13 Test cable banana-banana 1m 1000V/32A yellow |
1 pc
(3 pcs for three-phase system) |
|
RS232 cable 1.5m |
1 pc |
|
Spare fuse |
1 pc |
|
Interface cable |
2 pcs
(for three-phase system) |
|
Option 133-01 High current adapter |
1 pc
(for three-phase system) |
|
Operation manual, CD |
1 pc |
|
Test report |
1 pc |
|
| Options (extra
order): |
|
Option 140-50 |
Current coil x25, x50 |
|
Option 10 |
Test cable banana-banana 1000V/32A,1m,black |
|
Option 11 |
Test cable banana-banana 1000V/32A,1m,red |
|
Option 12 |
Test cable banana-banana 1000V/32A,1m,blue |
|
Option 13 |
Test cable banana-banana 1000V/32A,1m,yellow |
|
GPIB cable 2m |
Double shielded 2m IEEE488 cable |
|
POWER |
Application SW for electric power transducers calibration |
|
|
|
|
|
|
Click for
MC133 datasheet
|
|
Return to Homepage |
