Available in both single-phase and
three-phase configurations
•
Bidirectional input and output
•
Available with split-core current
sensors
APPLICATIONS
•
Accurate monitoring of real (active) power
that contains dc and non-sinusoidal ac
components
• Variable frequency motor drives
•
Ideal with complex ac signals and phase angle
controlled firing circuits

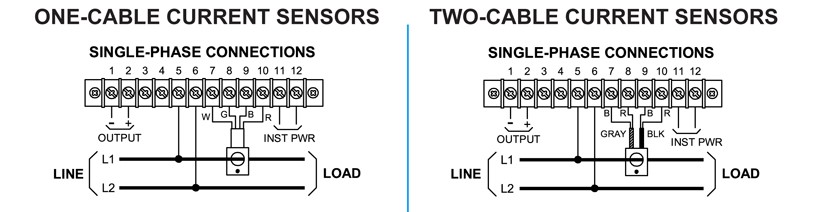

SINGLE-PHASE (ONE
ELEMENT)

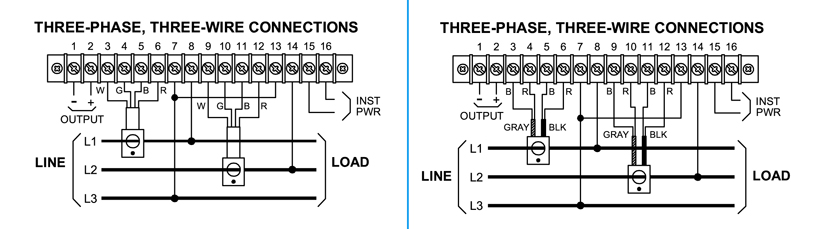

THREE-PHASE, THREE-WIRE (TWO-ELEMENT)

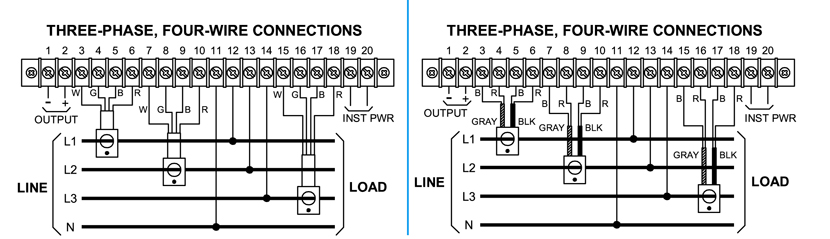

THREE-PHASE, FOUR-WIRE (THREE-ELEMENT)

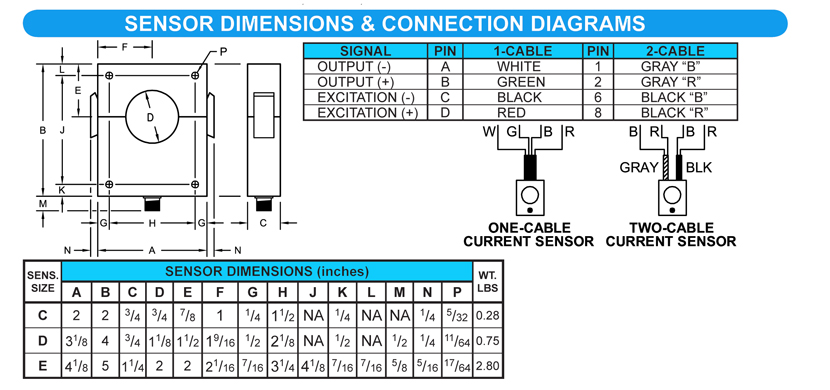

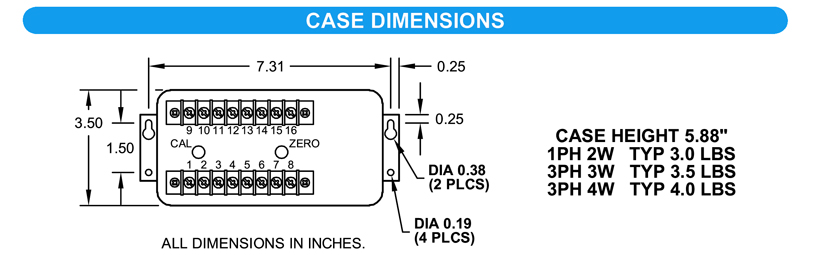

Solid-core models are supplied with 18-inch cables on
sensor sizes C & D. All other solid core models supplied
with detachable 8-foot cable. Sensor size C split-core
models are supplied with 8-foot attached cable. All
other split-core models are supplied with detachable
8-foot cable. Longer cables are available.

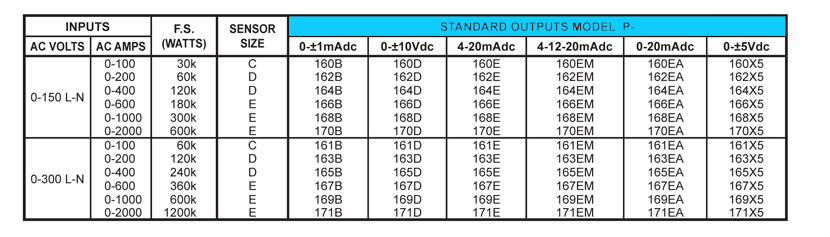

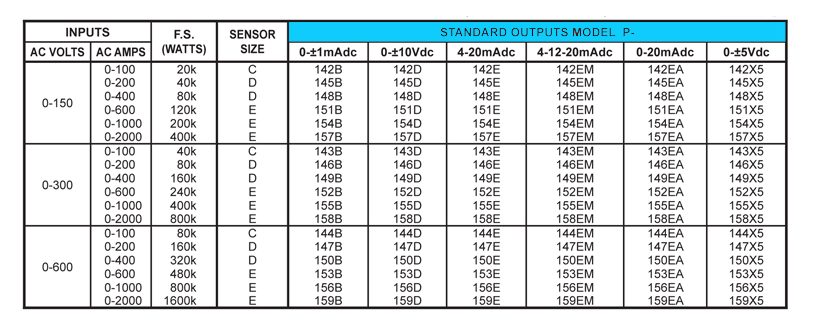

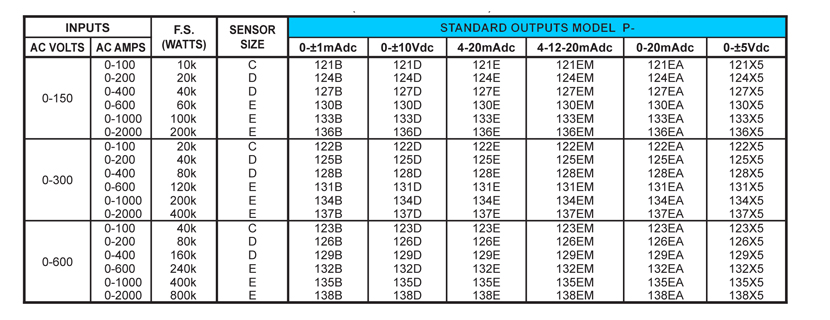

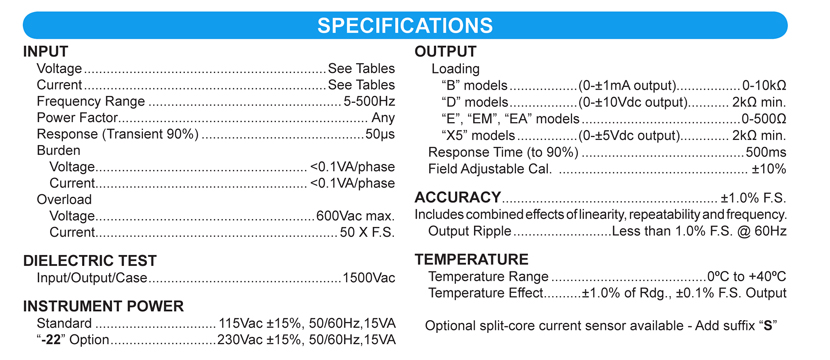

ORDERING
All units require 115Vac instrument
power 50/60Hz.
Optional 230Vac instrument power -
add suffix “-22”
FOR
OPTIONAL SPLIT-CORE CURRENT SENSOR
ADD
SUFFIX “S” TO PART NUMBER
(mention current range)
