RCT
series flexible split core current sensors with
0-5V, avoiding LV & HV shutdown |
The RCTi, RCTi-3ph and RCTrms are ideal for retrofit
replacement for medium/large current, split core current transformers operating with
transducers. Excellent performance at power frequencies 1Hz to 1MHz, also ideal for
VFD drives and induction heating. The new RCTi and RCTrms current sensor/transducers are
suited to permanent or semi permanent installation. The coil sensor is
durable, thin, lightweight,
flexible and will easily clip-around the conductor. The output from the transducer can be
ac voltage (RCTi, RCTi-3ph) or a true rms output (RCTrms).
Typically the RCTi is used with data loggers, oscilloscopes, data acquisition cards, power
analyzers, harmonic analysis and in power quality applications. The RCTrms is used
in process control Scada Systems and industrial power applications, where a
dc output represents the rms ac current.
RCTi Models:
|
RCTi 1- Range 100/200A |
RCTi 5- Range 2500/5000A |
| RCTi 2- Range 250/500A |
RCTi 6- Range 5000/10000A |
|
RCTi 3- Range 500/1000A |
RCTi 7- Range 10000/20000A |
|
RCTi 4- Range 1000/2000A |
RCTi 8- Range 25000/50000A |
- Available as single or three phase
- Available sense coil lengths 300, 500 or 700mm
- Optional mini coils, 3.5mm thickness, 100, 200 or 300mm length
- Isolated measurement output
- 0-5V (7.07pk ) into 1kohm or 4-20mA outputs
- 2kV insulation continuous (tested 4kV) / 10kV optional (tested 15kV)
- <1% accuracy from 5%-150% of range
- Bandwidth 0.6Hz to 1MHz
- Operation to 150% FS 10.6Vpk
- 12, 24, 48, 125Vdc or 110Vac, 220Vac power supply options, see *
- Operating range -5°C to +65°C
- Safety EN61010:2001
- CE marked
|
|
|
Flexible core
current transformers with 1A or 5A output |
|
NEW COMPACT -
ALL IN ONE WITH 1A OUTPUT
Model RCT1A - Any ratio from 100/1A to 50000/1A
The RCT1A current
probe has a 1A secondary current output - current sensing is based on a Flexible Core
Loop. The RCT1A is a 1A output Flexible current probe.
The TA module is used for interfacing existing RCTi and IRF current probes to existing 1A or 5A metering circuits. The
TA module converts the RCTi/IRF voltage output to 0-1A or 0-5A signal. Unlike
conventional CTs, there are no open circuit hazards, these are ideal with
installations in confined spaces. The RCT1A, RCT/TA5V-5A
combination simplifies
installation and eliminates the need for expensive LV/HV plant shutdown.
Models from 100/1A to 50000/1A, Accuracy Class 1 (1%) at 5VA. UL/CSA
pending
Models
RCT1A / 100A / D24 / 300
RCT1A / 250A / D24 / 300
RCT1A / 500A / D24 / 300
RCT1A / 1000A / D24 / 300
RCT1A / 2500A / D24 / 300
RCT1A / 5000A / D24 / 300
RCT1A / 10000A / D24 / 300
|
|
|
|

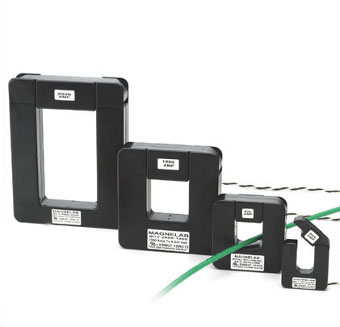

Optional low cost voltage output compact split core
current
transformers for use with TA module for 1A or 5A output
|
|
|
|
RCTi Option
Model TA5V-5A output module
TA5V-1A & TA5V-5A Specification summary
These modules are used to convert any voltage output current
measuring device
to a 1A or 5A secondary. Used typically with standard RCTi & IRF probes.
Casing: Din Rail module UL94V0 and CSA
approved polycarb, 105mm length
Bandwidth: 20Hz-200Hz (10Hz-50kHz at 1A)
Rating: 5VA
Phase shift: 0.04° at 50/60Hz
Accuracy: <1.0% accuracy
Input impedance: 100kohm
Accurate with waveform crest factors: 1 - 5
Input ranges: 10mV to 10V input
Power: 24Vdc, 110Vac or 230Vac power
Includes: Din Rail, PSU and output CT (5A) |
|
|
Examples of RCT1A, RCTi & RCTrms
current sensor order
codes |
RCT1A / range / power supply / coil length mm
1000A range, 1A output with 24Vdc power and 300mm coil length =
RCT1A
/ 3 / D24 / 300
RCTi / range / power supply / coil length mm
500/1000A range, 0-5V output with 12Vdc power and 300mm coil length =
RCTi
/ 3 / D12 / 300
RCTrms / range / output / power supply / coil length mm
5000/10000A range, 0-5V output with 24Vdc power and 500mm coil length =
RCTrms
/ 6 / 005 / D24 / 500
RCTi-3ph / range / power supply / coil length mm
5000A range, 0-5V output with 12-24Vdc power and 500mm coil length
=
RCTi-3ph
/ 5 / D24 / 500
RCTi / range / power supply / coil length mm
500/1000A range, 0-5V output, 24Vdc power and 200mm mini coil length =
RCTi
/ 3 / D24 / 200M
<< New >>
Optional 3.5mm diameter 100, 200 or 300mm sense coils
* to meet CE / UL safety requirements, an external power
adapter is supplied for 125Vdc, 110Vac and 230Vac options
|
