Phase Angle Voltmeter GP102A-PAV

Powertek
UK Tel: +44 1788 519911
US Tel: +1 631 615 6279
Email : info@powertekus.com
Email : info@powertekuk.com

return to homepage | info@powertekuk.com | contact us

Replaced by new GP1700 click here

With advanced DSP technology using Discrete Fourier Transform algorithms, the GP102A-PAV provides capability, performance and versatility not available with traditional PAVs. Targeted at the Synchro/Resolver and LVDT/RVDT marketplace, this instrument makes measurements of Phase Angle, In-Phase, Quadrature (90 component), Fundamental and Total Vrms very straightforward.  All these measurements are displayed simultaneously on a bright multifunction display. The readout can even be zoomed to enlarge any selected measurement.  Isolated inputs allow null, ratio (in-phase, quad, fund, total rms, sum+difference) and gain measurements of key parameters. A reference offset facilitates bridging measurements along with a  sensitive null meter for precise nulling. An on-board reference generator (with optional amplifier) eliminates the need for an external reference; although the unit can be used with an external generator.  Using an optional switching matrix (TAF01-U), LVDT, RVDT and resolver measurements can be automated.

    Onboard generator
    1mV-8Vrms with 100mA drive current, isolated reference and signal inputs, range 10uV to
    500Vpk, DC - 2MHz


    PAV measurements

    Total vrms, in-phase, quadrature, phase angle, fundamental, frequency, all ratios, diff/sum ratio and analog style null meter

    High speed data output
    PAV parameters & watts at 1000 rdgs/sec for dynamic testing of motors, gyros and resolvers

    PC Software

    PAV measurement acquisition & display software and RS232 included, IEEE-488 optional

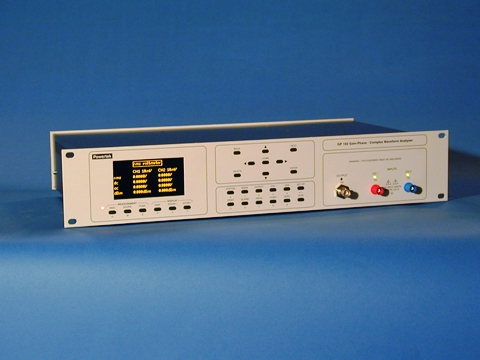

GP102-PAV Phase Angle Voltmeter



Applications

Typical applications for a phase angle voltmeters (PAVs) are found in the area of position sensing, motion and control.  Devices like Resolvers, LVDT (Linear Variable Differential Transformers) and RVDT (Rotary Variable Differential Transformers), convert mechanical movement and position to electrical signals, feeding a control system.  Position sensors are used in a variety of applications like aircraft instruments, aircraft control surfaces, inertial navigation, gyros, autopilot and weapon aiming systems.



Other GP102-PAV features included

  • Fast dual channel dc-2MHz isolated voltmeters
  • THD and harmonics for voltage and current
  • Wattmeter and LCR/impedance meter
  • Selective level meter (measures amplitude at a particular frequency)
  • Wound component tester, inductance, turns ratio and DcR
  • Voltage & current waveform display
  • LVDT / resolver ratio measurements on all winding combinations
  • Fast measurement speeds exceeding 1000 measurements/second
  • Available in upright case and 19" rack 2U formats.
  • Includes RS232 interface, GPIB (option), PC software available, NI LabView drivers, MS Excel compatible, MS Excel Macros available



Click here for GP102 general data sheet GP102A-PAV spec shown below:-

Click here for GP102 options and accessories


 Example GP102A phase angle voltmeter (PAV) screen shots

Main PAV display showing inphase, quadrature and fundamental components GP102 null meter (set to display inphase null), often used for centering LVDT  control devices and bridging measurements

vector voltmeter (PAV) measurementChange from PAV to frequency response measurement with a few key presses Check impedance, inductance or capacitance of the device under test


Specifications for GP102A-PAV primary measurements

Channels / display 2 isolated / 5 digits resolution (0.01 Phase Angle)
Measurement Total Vrms, Fundamental, Inphase, Quadrature, Frequency, Phase angle plus Null Meter
Voltage Input Ranges 500V 300V, 100V, 30V, 10V, 3V, 1V, 300mV, 100mV, 30mV,10 mV or Autoranging
Phase Input Ranges 0.00 to -360, 0.00 to +360  or 0 to 180
Frequency Range Dc to 2MHz
Common Mode Rejection Ratio (CMRR) 5Hz to 999.99Hz :  126dB
1kHz to 5kHz:        110dB
5kHz to 32 kHz:     100dB
32kHz to 64kHz:     91dB
Harmonic Rejection 80dB (even and odd)
Max input 500V peak
500V peak from earth
Input impedance 1 M // 30pF (excluding. Leads)
Coupling Ac or ac+dc
Time constant 0.2s, 1.5s or 12s
Output generator (sinewave) 1mV to 8Vrms (12Vpk) at 100mA


Accuracy (Signal and Reference)

Frequency Voltage   Rdg + Rng Phase

Gain Ratio

10mHz to 2kHz 0.03% 0.03% 0.005 0.02dB
2kHz to 5kHz 0.05% 0.05% 0.01 0.03dB
5kHz to 20kHz 0.10% 0.10% 0.03 0.04dB
20kHz to 32kHz 0.10% 0.20% 0.15 0.06dB
32kHz to 54kHz 0.10% 0.80% 0.25 0.08dB
54kHz to 100kHz 0.10%  1.20% 0.50 0.12dB


Ordering and options

Specify:-
GP102A upright models

- GP102-PAV  supplied 110Vac / 230Vac

GP102A-R 19" 2U rack format
- GP102R-PAV supplied 110Vac / 230Vac

All models include:-
USB-RS232 converter, RS232, RS232 cable, CD software utilities, 2 x ISO input cables probes, output cable,
quick guide sheets, user manual, calibration certificate and  certificate of conformance

Options
-
GPIB IEEE-488
- Option 01A Active LCRZ head inc Kelvin connectors
- Option 01P Passive LCRZ head inc Kelvin connectors



All products have CE, IEC, EN or BS approvals.
