AC-DC Watt Transducer, Models WT1ph and WT3ph, measure all waveform types from sinewaves, on/off dutycycle to complex VFD applications, DC-20kHz

Safety and good working practice when using the WT1ph and WT1ph Watt Transducers

1. Ensure that all personnel connecting and configuring the WT1ph are fully trained and conversant with electric shock and fire hazards associated with electricity supplies
2. Ensure the circuit under test is switched off and isolated before connection
3. Only use fused safety type cables for connections to the WT1ph probe.  These cables are typically fitted with a 4mm safety type banana connector on either end.  All connections should be insulated to prevent human contact
4. Ensure that the WT1ph output (lo terminal) is connected to a grounded point on the scope/data logger/measurement system.  Ensure it is a true ground and not just signal low
5. Ensure that the maximum differential input voltage of (1000Vpk) and input voltage to ground (1000Vpk) are not exceeded
6. Users should always work in pairs, both parties should be trained and familiar with medical procedures in the event of electric shock
7. Ensure the circuit test is protected with over current protection
8. During installation, avoid all mechanical stress to the WT1ph probe terminals
9. Do not use the probe with the case open
10. Ensure that the storage and operating conditions are clean and dry, do not use where there is risk of explosion

Description

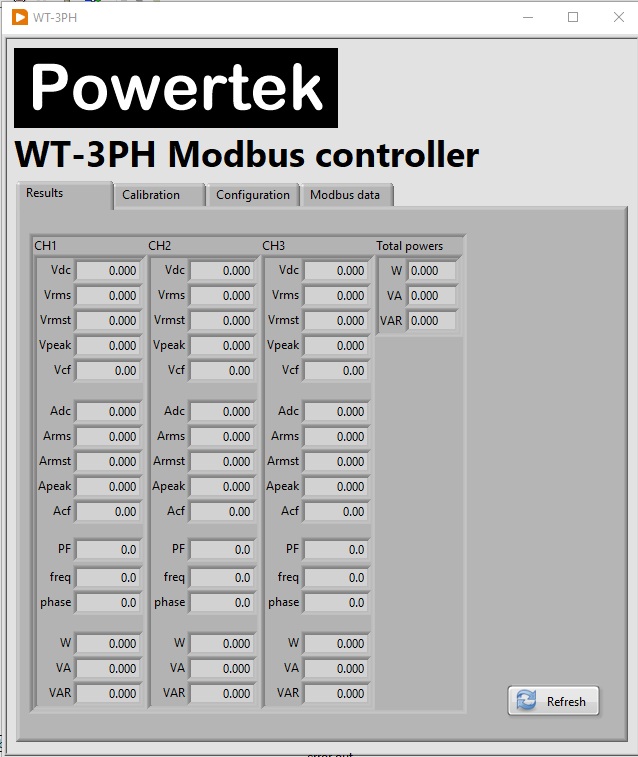

Unlike most Watt Transducers, our Model WT Series uses high-speed simultaneous sampling with analog-to-digital converters, these provide accurate ac measurements regardless of waveshape or frequency. This includes real power (W), real power factor (PF) reactive power (VAr) delivered to a load. Bi-directional capability means power can be measured in both directions, with indication of import and export. Especially in applications like Locomotive, Electric vehicle where motoring and regeneration occurs with power and energy. Models are available in a variety of configurations with current ranges up to 1000A and nominal voltage ratings up to 600V. Models are available in 1, 2 and 3 element versions; suitable for all single-phase and three-phase power systems. RS485, CAN BUS, Modbus and Analog output signals are available. Forward (consumed) power is indicated with a positive polarity and reverse (generated) power with a negative polarity. Unidirectional outputs (4-20mA) indicate forward (consumed) power, 4-12-20mA allow for both directions. Easy scaling of VTs and CTs is possible. All outputs are galvanically isolated from the measured inputs and instrument power.

The sensor power input is designed to operate over a wide range associated with process control and sub-station auxiliary dc supply systems.  Some typical applications are voltage monitoring in Solar PV, Dc drives, UPS, Frequency Changers, Process Control, Rail Transportation, and EV. For all products, a NIST/NPL/UKAS traceable calibration certificates of conformance are available.
