DC and AC current shunts from 5A to 50000A

Powertek
 UK Tel: +44 1788 519911
 US Tel: +1 631 615 6279
 Email : info@powertekus.com
 Email : info@powertekuk.com

return to homepage | info@powertekuk.com | contact us

A wide range of high quality current shunts from 5A to 50,000A with 0.25% accuracy specification for most models and optional 0.1% on request.   The range is available in single or multi element configurations, with and without mounting base.   DC current shunts produce a voltage (mV) proportional to the current flowing through the device, industry standard mV models are available, the mV/A relationship can also be specified by the user.  Mechanically the current shunts are robust, constructed with low temperature coefficient manganin sense elements, designed to withstand over-current, over-temperature and mechanical stresses.  As standard and where applicable, the shunts are supplied with high quality brass connection hardware, brass sense terminal screws.   Anti-corrosive/anti-tarnishing agents are applied to help maintain good electrical contact, if requested, an optional silvered flash finish can be applied.   Traceable calibration test certificates to NRC (Canada), NIST (USA) and SI (Systeme International) and statements of conformance are available on request.

Shunt Types

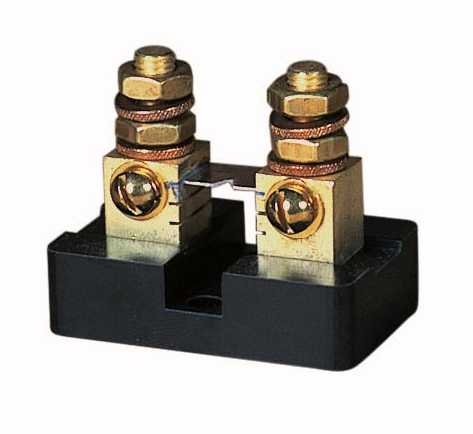

Type C with base mounting

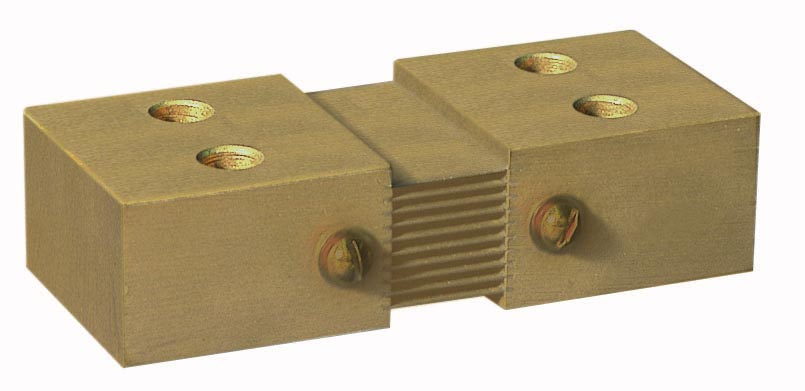

Type A / Type FL

Type LA

Type H









DC Ammeter Shunts World's Largest Selection
Selection Guide Type of Product
Base Mounted Shunts Type LA - Lightweight - 5 to 150 Amps, 50 and 100 mV
Type LB - Lightweight - 170 to 600 Amps, 50 and 100 mV
Type LC - Lightweight - 800 to 1,200 Amps, 50 and 100 mV
Type C - Switchboard - 1 to 500 Amps, 50 and 100 mV
Type LAB - Laboratory Portable - 10 to 1,000 Amps, 50 and 100mV
Bus - Bar Shunts Type A - Solid End Block - 1,500 to 6,000 Amps, 50 and 100 mV
Type R - Multi-Fin Design - 1,000 to 2,000 Amps, 50 and 100 mV
Type H - Multi-Fin Design - 2,500 to 30,000 Amps, 50 and 100 mV
Type K - Multi-Fin Design - 600 to 10,000 Amps, 50 and 100 mV
Type M - Single Fin Design - 300 to 1,000 Amps, 50 and 100 mV
Type G - Multi-Fin Design - 3,000 to 10,000 Amps, 50 and 100 mV
Type 860 Shunts
Designed to DIN Requirements
On request
Heat Sink Mounted Shunts On request
Shunts Without Base Type G - Switchboard - 75 to 2,500 Amps, 50 and 100 mV
Type V - Switchboard - 15 to 600 Amps, 50 and 100 mV
Type E - Switchboard - 300 to 1,200 Amps, 50 and 100 mV
Type F - Switchboard - 100 to 600 Amps, 50 and 100 mV
Type FL - Switchboard - 1,000 to 3,000 Amps, 50 and 100 mV
Information Pages Page 1 - General Information / Characteristics of Manganin
Page 2 - Shunt Selection Guide / Design Considerations
Page 3 - Duty / Ambient
Page 4 - Temperature Rise / Environment / Conclusion

Read about single shot verification of large dc currents



Return to Powertek Homepage
